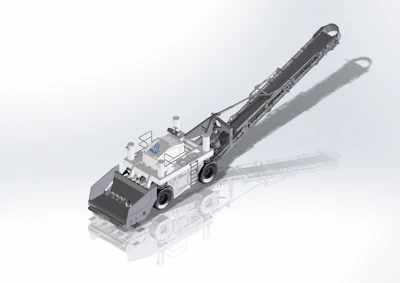

MP550 Material Placer

Debuting at the World of Concrete 2015, the MP550 material placer is capable of handling a wide variety of concrete slumps and dry materials

• 35-ft.-long Swing Conveyor can pivot 170 degrees and features a hinge point near the tail pulley for clearing barrier walls or other obstructions
• High capacity Transfer and Swing Conveyors
• Hopper can hold 5.5 cu. yds.
• Hopper front "flog gate" with hydraulically adjustable rubber seal to eliminate concrete loss while dumping
• Hopper is available with hydraulically adjustable front pusher rollers
• Hopper front lip is 23 in. off the ground
• Tier 4 Interim engine
• Eco-Mode reduces fuel consumption up to 35%
• Tire over track design
• Four wheels with high flotation tires
• Four-wheel-drive with acumen
• Dual axle steering with 12-ft. inside turning radius
