Overview
Quick Details

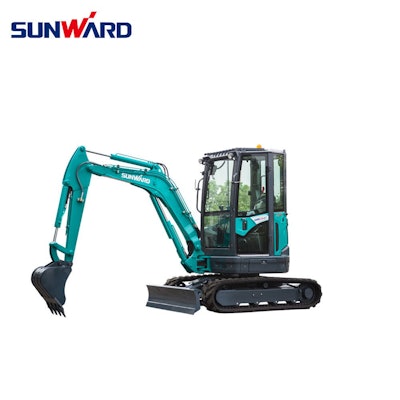

Applicable Industries: Manufacturing Plant Showroom Location: Indonesia Place of Origin: Hunan, China Brand Name: SUNWARD Condition: New Moving Type: Crawler Excavator Operating Weight: 2ton Bucket capacity: 0.022mmm Maximum Digging Height: 3085mm Maximum Digging Depth: 1825mm Max Digging Radius: 1221mm Rated Speed: 2.9/KM/H Warranty: 2 years Hydraulic Cylinder Brand: KYB Hydraulic Pump Brand: KYB Hydraulic Valve Brand: KYB Engine Brand: ISUZU UNIQUE SELLING POINT: High digging power After Warranty Service: Video technical support Local Service Location: Indonesia After-sales Service Provided: Field installation, commissioning and training, Online support Certification: iso9001 Color: BlueSUNWARD SWE25F excavator mini bagger with cheapest price FOB Reference Price:Get Latest Price $28,104.00 - $34,106.00/ Set|1 Set/Sets(Min. Order) Model Number: SWE25F Machine Weight: 2ton Lead Time: Quantity(Sets) 1 - 1 >1 Est. Time(days) 15 To be negotiated Customization: Customized logo(Min. Order: 10 Sets) Customized packaging(Min. Order: 10 Sets) More Shipping: Support Sea freight 2 years for machinery warranty globalAlibaba.com Freight|Compare Rates|Learn more Protection: Trade Assuranceprotection your alibaba.com order Refund Policy Welcome partners to contact us to achieve business and provide customers with better SUNWARD products.
Parameter List
Type of cab Cabin/Canopy Bucket capacity,std. 0.066m³ Bucket width 600mm Machine weight 2640kg
Dimensions
Overall length 4262mm Overall height 2400mm Overall width 1500mm Ground clearance 280mm
Engine
Brand Yanmar Model 3TNV80F-SPSU Displacement 1.267L Output 14.6kW/2400rpm
Working ranges
Max. cutting height 4445mm Max. loading height 3110mm Max. digging depth 2705mm Max. vertical wall digging depth 2745mm Max. digging reach 4845mm oom swing angle(left/right) 66°/54° Front swing radius 2143mm Tail swing radius 1050mm Max. digging force(Arm) 14kN Max. digging force(Bucket) 24kN Track Type Rubber track/Steel track Track width 300mm
Undercarrige
Track length 1990mm Length to center of rollers 1560mm Lenhth to center of track 1200mm Travelling speed(High/Low) 4.4/2.2 km/h Gradeability 30° Swing speed 10rpm Ground pressure 25kPa Dozer size Width 1500mm Height 325mm Lifting capacity (Height/Depth) 330/3.20 mm Hydraulic pumps 2 variable plunger pumps (2*28.8L/min) 1 gear pump (19.2L/min) 1 guide gear pump (6.5L/min) Swing motor Plunger motor Travel motor 2-speed plunger motor Fuel tank capacity 42.5L Hydraulic oil tank capacity 30L
